Miniaturized vapor compression provides full-size mobile refrigeration in ultra-compact solutions
Refrigerant | R290 |
---|---|
Voltage | 24V DC |
Cooling Capacity | >760W (2,592Btu) |
Working Amps | 1~12A |
Ambient Temp. | -5~55°C (-4~131°F) |
Controller Speed | 2,100~4,500rpm |
Weight | 1.6kg/3.53lbs |
Dimension | 141.5 x 61 mm (H x D) |
Application | Mobile Refrigeration and Air Conditioning in LBP/MBP/HBP systems |

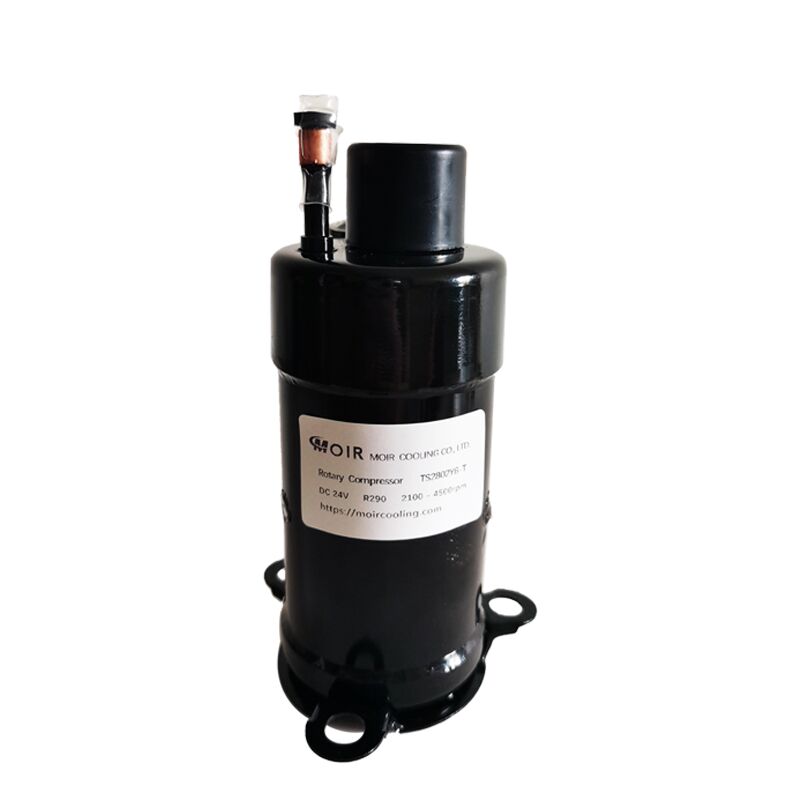

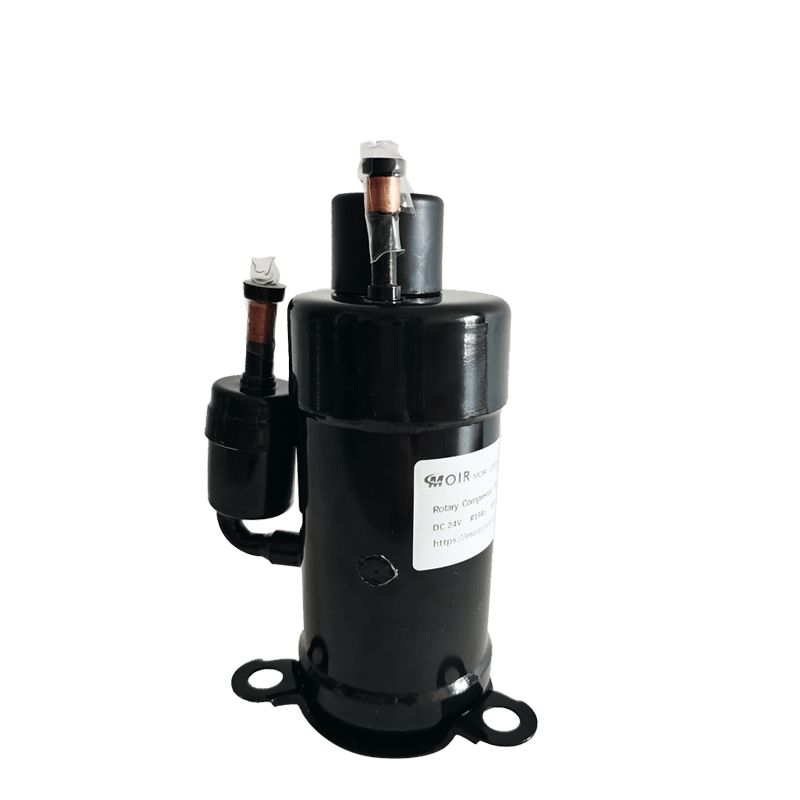

MOIR miniature inverter rotary BLDC compressor represents a significantly compact, reliable technology with low vibration, low noise and great power.
The MOIR variable-speed DC-powered compressors are intended for employment in mobile and portable applications where space and weight are key parameters. For instance, portable cooling boxes, parking coolers in vans, boats, and buses, and battery cooling in telecom stations. Because of its low operating cost and the wide-supply voltage in 12V/24V/48V, the micro compressors also suitably match stationary applications powered by fuel cells or solar panels.
At MOIR, we keep developing our miniature cooling solutions and our people in the same innovative way. The outcome of our new development small compressor with propane R290 refrigerant and twin-cylinder configuration is the result of our innovation and endeavor.
-R290-A Greener Tomorrow: Compared to traditional refrigerants R134a, and R404, the tests carried out show that the propane R290 has better eco-friendliness, higher energy consumption, and better thermal properties. Powered by the propane refrigerant gas, your cooling system will be particularly attentive to eco-sustainability and energy saving It is not just a part of the solution; it represents the future of cooling technology.
– DC-powered Connection: The DC-powered feature of MOIR small compressor is a game-changer when it comes to flexibility and energy efficiency. Being compatible with DC power sources makes these small vapor compressors versatile and adaptable for many off-grid and mobile applications. You can connect them to solar panels, batteries, or any DC power supply. It opens up new possibilities for sustainable and reliable cooling solutions.
– Twin-Cyliner Setup: Combined with a DC variable frequency technology and a twin-cylinder configuration, this TS3802Y6-T small direct current compressor ensures your cooling system a lower noise and a smoother and more even compression process. Plus, the dual-cylinder configuration not only reduces vibrations but also extends the operational lifespan of the compressor, making it a robust and dependable choice.
