Introduction

Cooling systems are pivotal in managing heat and ensuring optimal performance across various thermal maangement applications, from electronic devices to industrial processes. As technology advances, the demand for compact and efficient cooling solutions has grown significantly.

This article explores the importance of small inverter chiller-compact cooling systems in thermal management, the different types of cooling systems available, and the benefits of compact compressor cooling systems, helping you choose the appropriate cooling sytems for your application.

Why Cooling System is Crucial for Thermal Management Applications?

Thermal management is the process of controlling and maintaining the temperature of systems, components, or environments within specified limits to ensure optimal performance and prevent damage. In the context of electronics, machinery, and industrial processes, heat generation is inevitable. Left unchecked, excessive heat can lead to thermal stress, component degradation, and ultimately, system failure.

Efficient and proper cooling is essential for mitigating these risks and maintaining the reliability and longevity. They help maintain optimal operating temperatures, enhance system reliability, extend component lifespan, and improve overall performance. Moreover, with the increasing focus on sustainability and energy efficiency, modern cooling solutions must also be designed to minimize environmental impact and operational costs.

2 Mainstream Types of Cooling System

1) Thermoelectric cooling system

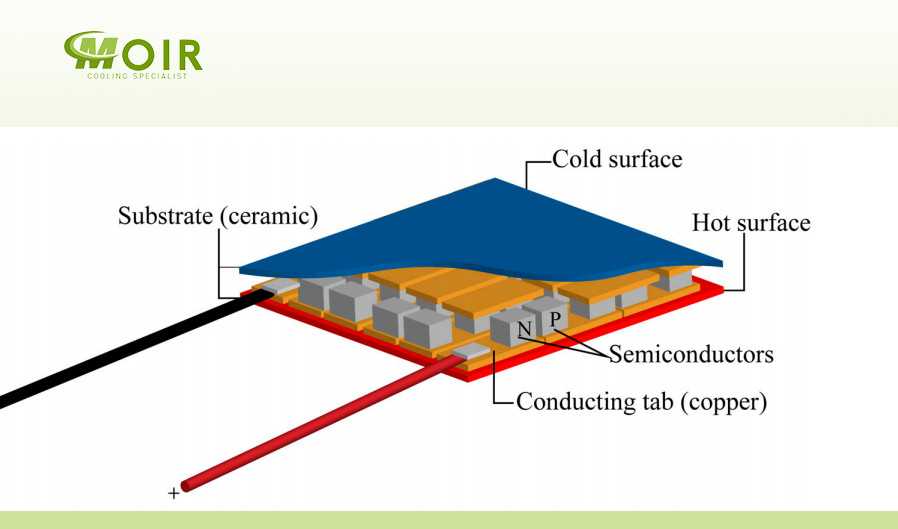

Thermoelectric cooling, also known as Peltier cooling, is based on the Peltier effect, which involves the transfer of heat from one side of a solid material to the other when an electric current is passed through it.  It is comprised of two thin ceramic wafers that enclose a series of N-P-type semiconductor material junctions between them.  This type of cooling system is particularly suitable for applications requiring precise temperature control and small cooling power in small footprint, such as small refrigerators, vehiciles refrigerators, picnic coolers, motorcycle helmet coolers, etc.

Thermoelectric coolers are silent, have no moving parts, fluids or gasses, and can be easily integrated into various systems. However, they tend to be less efficient than other cooling methods, especially at higher temperatures, and may consume more energy.

2) Compressor cooling system

Compressor-based cooling systems utilize a refrigerant cycle to absorb and reject heat. These systems typically include a compressor, condenser, evaporator, and expansion valve ( or capillary). The compressor raises the pressure and temperature of the refrigerant, which then rejects heat to the surroundings in the condenser. The refrigerant expands in the evaporator, absorbing heat from the surrounding environment, thus cooling it.

Compressor cooling systems are highly efficient and capable of providing significant cooling capacity, making them ideal for both commercial,  industrial and high-heat-load applications, including most of our refrigerators and freezers, as well as other refrigeration systems ( such as cooled lab incubators).

3 Types of MOIR Compact Cooling Systems Available

MOIR offers several types of compact cooling systems tailored to specific needs:

1) Liquid-chilled system

In contrast to traditional icy water chillers, the liquid-chilled system operates as a compressor-driven circulating cooling system.  These systems use a liquid coolant, such as water or a glycol mixture, to transfer heat from the system to an external heat exchanger.  They are known for their high efficiency and ability to provide stable temperature control. Liquid-chilled systems are commonly used in research and instrumentation applications where precise temperature control is crucial.

MOIR’s liquid-chilled systems are available on Plate-type inverter chiller and Coaxial-type inverter chiller, delivering cooling capacities ranging from 300W to 1,000W. They offer high heat transfer rates because the secondary coolant has a high thermal conductivity and specific heat. Water chiller systems can be quite compact because a pump circulates a coolant which offers high heat flux. Using a secondary coolant enables the size of heat exchangers to shrink, while thermal performance increases. A water-cooled chillers from compressor is perfect of cooling high heat flux components and in application where a solutin must be of rock-solid reliability.

2)  Air-chilled system

Air-chilled systems use air as the heat transfer medium. Air is circulated through the system, absorbing heat and then being exhausted or recirculated after passing through a cooling coil. These systems are simpler and less expensive than liquid-chilled systems but may not provide the same level of temperature control precision. Air-chilled systems are particularly suitable for cooling extensive heat loads or multiple distributed loads, like electronic components, while minimizing any necessary modifications to the existing system.

MOIR’s air-chilled system – micro air conditioner efficiently elimiate heat and humidity from the air, which is then circulated through the system to effectively cool the heat source.

3)  Direct refrigerant system

Direct refrigerant systems, also known as DC cooling units,  utilize refrigerant directly within the cooling loop, eliminating the need for an intermediate heat transfer fluid, liquid recirculating pump, and associated connectors which are sources of failures and leaks. This method greatly minimizes the size and component count of system, and it is significantly simplified improving reliability.

These DX systems are highly efficient and can provide rapid temperature changes. They are typically used in high-performance applications, such as laser systems and medical imaging equipment.

5 Key Benefits of Compact Cooling Systems

1) Space Saving:  Based on micro-refrigeration technology, the compact cooling systems are designed to be space-efficient, making them ideal for various applications where space is limited.  Their small footprint allows for easier integration into existing systems and environments, reducing the overal footprint of the cooling solution.

2) Energy Saving:  Modern compact cooling systems are developed with energy efficiency in mind. Advances in technology have led to the development of more efficient compressors, heat exchangers, and control systems, resulting in reduced energy consumption and operational costs. When the cooling power required is higher 300W, the cooling systems with the use of mini rotary compressor technology can offers benefits of both small size and high efficiency.

3) Cost Saving: The compact design and efficiency of these systems not only reduce energy costs but also lower installation and maintenance costs. With fewer components and simpler designs, compact cooling systems are easier to install, commission, and maintain.

4) Enhanced Performance: Compact cooling systems provide precise temperature control, ensuring that systems and components operate within their optimal temperature range. This leads to enhanced performance, reliability, and longevity of the cooled systems.

5) Sustainable Choice: With the increasing focus on sustainability, compact cooling systems offer an environmentally friendly solution. Many systems utilize refrigerants with lower global warming potential (GWP), and their efficiency helps reduce overall energy consumption and carbon emissions.

How Does the Compact Compressor Cooling Systems Work?

Compressor-based cooling systems operate through a cycle involving compression, condensation, expansion, and evaporation of a refrigerant.

The compressor compresses the refrigerant vapor, raising its temperature and pressure. This hot vapor then passes through a condenser, where it releases heat to the surroundings and condenses into a liquid. The liquid refrigerant then passes through an expansion valve, reducing its pressure and temperature.

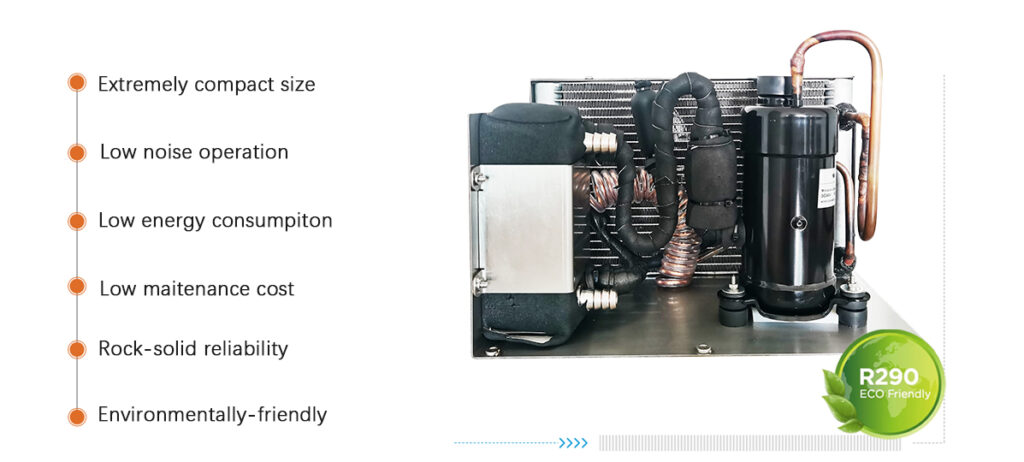

MOIR’s small inverter chillers offer high heat transfer rates because the refrigerant R134/R290 delivers a high thermal conductivity and heat-absorption capacity.  These chillers are extremely compact by utilizing our miniature DC rotary compressors.

MOIR’s small chillers are perfect for cooling high heat flux components and in applications where a solution must be rugged and reliable.  They are also ideal cooling solutions for small thermal applications where space and weight are key parameters.

What’s the Main Applications of the Compact Cooling Systems?

Now modern electronics and equipment require smaller yet more powerful cooling solutions that manage heat generation while consuming less power and taking up less space. Under this conditions, the demands for compact cooling systems are rapidly growing in the market.  Today, the compact cooling systems have been applied  into a wide range of applications across various industries, including but not limited to below:

• Electronics: Cooling of servers, data centers, and other electronic equipment.
• Healthcare: Maintaining precise temperatures in medical devices and storage units.
• Industrial: Cooling of machinery, lasers, and other industrial equipment.
• Automotive: Providing thermal management solutions for electric vehicles and hybrid systems.
• Food &  Pharmaceutical: Ensuing the safety and quality of food and pharmaceutical products
• Research & Development: Ensuring stable temperature conditions in research laboratories and instrumentation.

5 FAQs About Compact Compressor Cooling System?

1. What are the Advantages of Using Compressor Cooling Systems Over Thermoelectric Cooling Systems?

Compressor cooling systems generally offer higher cooling capacity and efficiency compared to thermoelectric cooling systems. They are better suited for applications with high heat loads and require less energy to maintain a specified temperature. Additionally, compressor systems can provide more stable temperature control over a wider range of operating conditions.

2. How to Select the Right Cooling System for Our Thermal Applications?

Choosing the right cooling system involves considering several factors, including the heat load, space constraints, energy efficiency requirements, and budget.

Thermoelectric cooling are typically preferred when a cooling power below 300W is needed. We recommend the use of compressor cooling units by higher cooling capacities.  These units are extremely compact and particularly robust against harsh working conditions, and delivers high energy-efficiency.

MOIR provides a portfolio of compact, high-performance and economical compressor cooling units. Our advanced compressor and system components, combined with our innovative packaging approaches, can offer you the optimal thermal solutions at the minimum cost for your specific needs.

It is essential to consult with a thermal management expert who can assess your specific needs and recommend the most suitable solution.

3. How long we could run your cooling systems at 4000rpm without any issues?

The operational lifespan and durability of cooling systems at high speeds depend on various factors, including the system’s design, maintenance schedule, and operating environment.

Per our experience and product quality, the shelf life of our cooling systems is 5-7 years approx. under normal conditions.

4. What’s the refrigerant filled in your compressor cooling systems?

The refrigerant used in compressor cooling systems depends on the specific application and regional regulations. Common refrigerants include R-22, R-410A, and R-134a. Newer systems may utilize refrigerants with lower GWP, such as R290,  to comply with environmental regulations.

All MOIR compressor cooling systems are charged with R134a and R290 to meet the requirements of different customers in different territories.

Sustainability is the key to our future.  The refrigerant R290 is fully compliant with the Environmental Protection Agency (EPA) and the Significant New Alternatives Policy (SNAP) regulations, ensuring environmentally responsible operation without compromising performance or safety.  Compared to traditional refrigerants, it has proven to reduce the energy consumption of refrigeration systems. MOIR always stays up-to-state on the market, offering our customers the new tech to meet the market’s new regulations.

5. Could you tell me what are your product use? In which industry?

Optimized the space and weight, MOIR small cooling systems are designed to alleviate overheating in the refrigeration equipment during operation process, maintaining a stable temperature to ensure the safety and longevity of the equipment.

Because of their numberous advantages of compactness, efficiency, and reliability, MOIR’s compact cooling systems can be found in applications across various industries:

• Electronics
• Automotive
• Medical Devices
• Personal Cooling
• Consumer Sector
• Industrial Processes
• Mobile Refrigeration
• Dog Crate Air Cooling
• Drone Docking Station Cooling
• Hydroponics Verticle Micro Farming

Our products are designed to provide precise temperature control in a compact, energy-efficient package, making them ideal for a wide range of thermal management applications.

Conclusion

Compact cooling systems, such as small inverter chillers, offer a reliable and efficient solution for thermal management applications. Their compact design, energy efficiency, and precise temperature control make them indispensable for various industries and applications.

By understanding the different types of cooling systems and their benefits, you can make an informed decision to select the most suitable solution for your specific needs. Contact info@moircooling.com today to learn more about our compact cooling systems and how they can enhance your thermal management strategy.
