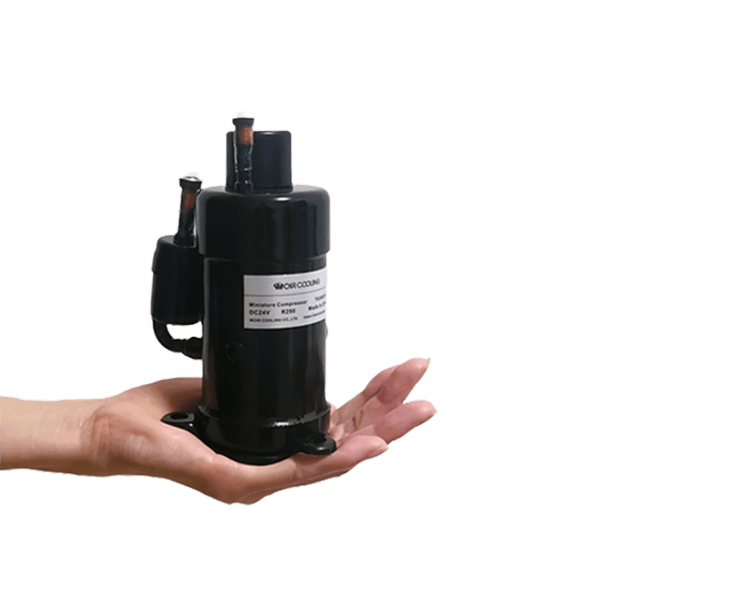

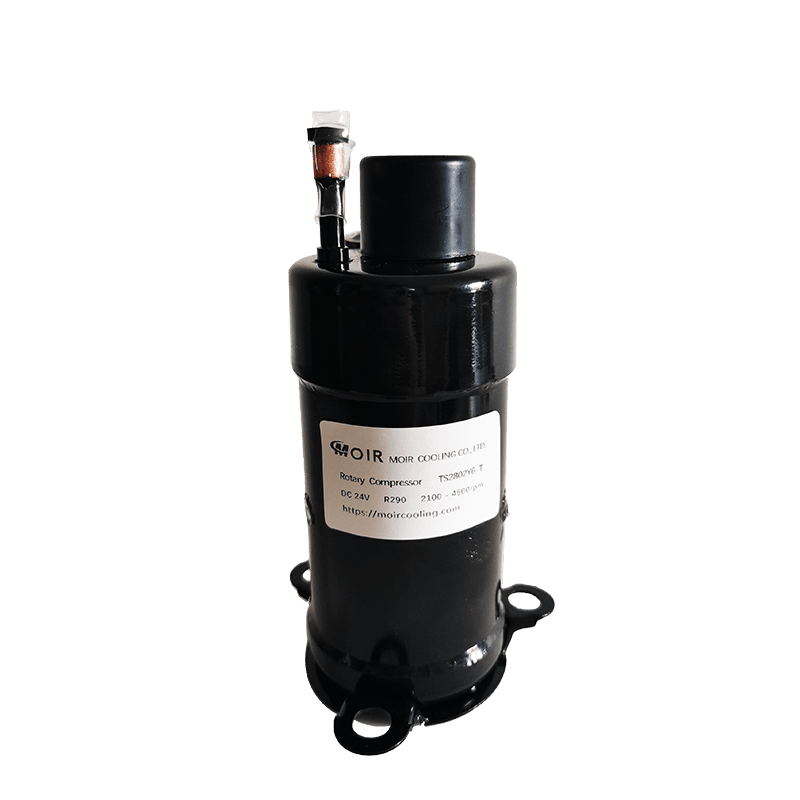

Mini Rotary Compressor TS2803Y6-T (48VDC, R290)
Unlocking Eco-friendly inverter DC compressor with exceptional power and energy-efficient
Additional information
| Refrigerant | R290 |
|---|---|
| Voltage | 48V DC |
| Cooling Capacity | >550W (1,875Btu) |
| Working Amps | 1~7A(Max.12A) |
| Ambient Temp. | -5~55°C (-4~131°F) |
| Controller Speed | 1,800~6,300rpm |
| Weight | 1.3kg/2.86lbs |
| Dimension | 129.5 x 61 mm (H x D) |
| Application | Mobile Refrigeration and air conditioning in LBP/MBP/HBP systems |
Description
MOIR, your trustworthy miniature BLDC refrigerated rotary compressor supplier. Backed up by our own factory which has been in the refrigeration & air conditioning rotary compressor industry, MOIR is at the forefront of innovation in micro refrigeration technology. Our dc inverter rotary compressors have been meticulously crafted to offer a glimpse into the future of efficient and sustainable cooling solutions.
What sets our cooling technology apart is the innovative development of mini rotary compressor with the use of natural R290 and twin-cylinder configuration, which reshape the standards of environmental friendliness, performance, and reliability.
MOIR is constantly developing our miniature rotary compressors. We’re not just your miniature cooling solution supplier and partner, we’re the innovator shaping the future of cooling.
Features
– Eco-friendly R290: At the heart of MOIR mini compressors, is the forward-thinking choice of refrigerant R290. This eco-conscious refrigerant boasts a remarkably low GWP. Compared to ancient R404A, or R134a, it has proven to offer higher cooling efficiency and better thermal properties of cooling systems. The conducted tests show a notable decrease in the amount of refrigerant needed to run the system.
– Twin-Cylinder Powerhouse: This 48V variable-speed mini-size compressor is equipped with a twin-cylinder motor, a game-changing feature that ensures great capacity while keeping noise and vibration levels to minimum. This configuration is identified as International in technology, making it ideal for applications where peace and efficiency go hand in hand.
– Higher Efficiency and COP: Energy efficiency is a hallmark of MOIR mini BLDC compressors. With a focus on this, MOIR has designed our tiny compressors to deliver optimal cooling performance while keeping low operating costs. Plus, with a speed variability controller ( 1800~6300 RPM), the small compressor can effectively load match to your desired temperature and offers a higher Coefficient of Performance > 3.0W/W.
Outdrawing Dimensions
