In the future, the cooling technology had to be not only amazingly small in size but also had to be exceptionally high in power density, with a quiet operation and reduced vibration. Additionally， it also had to be extremely lightweight.

At Moir, as a mini rotary compressor manufacturer & supplier, we strive every day to develop innovative and sustainable technologies that meet the growing demand for efficient and environmentally friendly cooling solutions. This 1.9cc-12V DC mini freezer compressor is one of our groundbreaking outcomes. Nowadays, these mini refrigerated compressors have been widely used in many portable and mobile applications, such as mini refrigerators, trucks, vans, portable air conditioners, etc.



Features

Extremely Compact: No bigger than a coked can, this 12V DC freezer compressor is designed in size of 78 x 56 mm and weight of 0.72kgs only. However, don’t be fooled by its small size. It can provide you with exceptional power densities and high COP. These compressor of kind has transcended the barrier for mobile refrigeration.

DC-Power Supply: These variable-speed refrigeration compressors are designed for connection to 12V power supplies and are compatible with R134a refrigerants. Can be sourced from a battery, vehicle, or solar panel. An on board AC/DC converter also allows the integrated cooling systems to accept 120/240 VAC wall power.

High Efficiency: With an advanced inverter drive board, the 12V mini compressor provides variable capacity and load following capability for precise temperature control and energy efficiency. It allows the users to regulate the the cooling effect as desired, saving the loss of electricity.

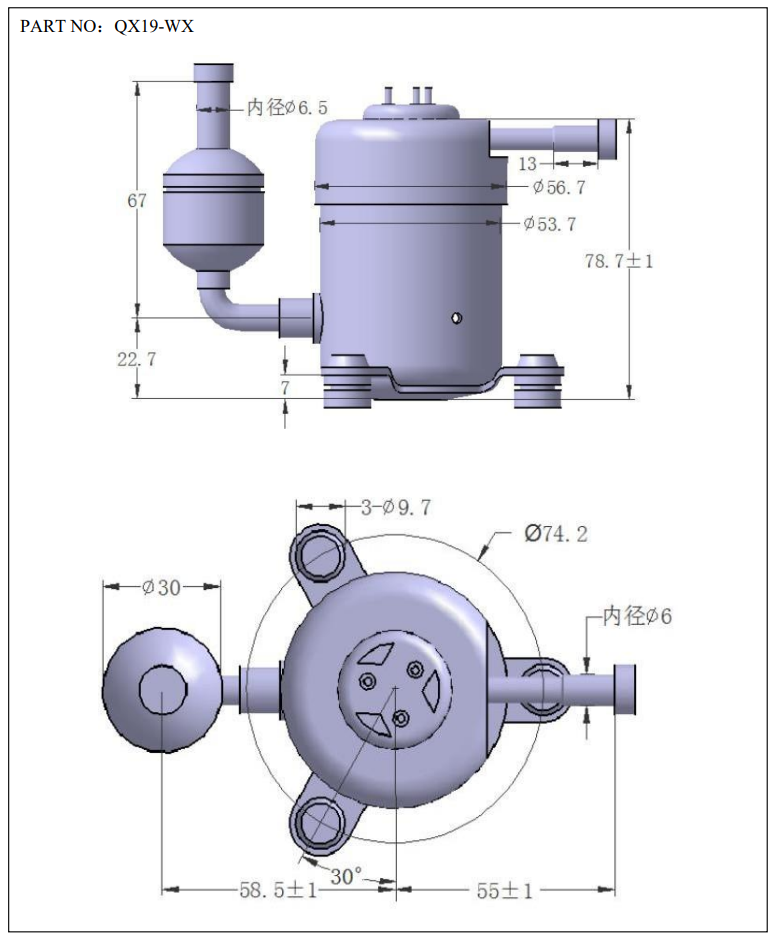

Outdrawing Dimensions



Performance Curve
